Adding Charts to a Profit and Loss Statement in Google Sheets

This guide provides a step-by-step process for adding charts to a profit and loss statement in Google Sheets. By following these instructions, you will learn how to visualize your data effectively, enhancing your analysis and presentation of financial information.

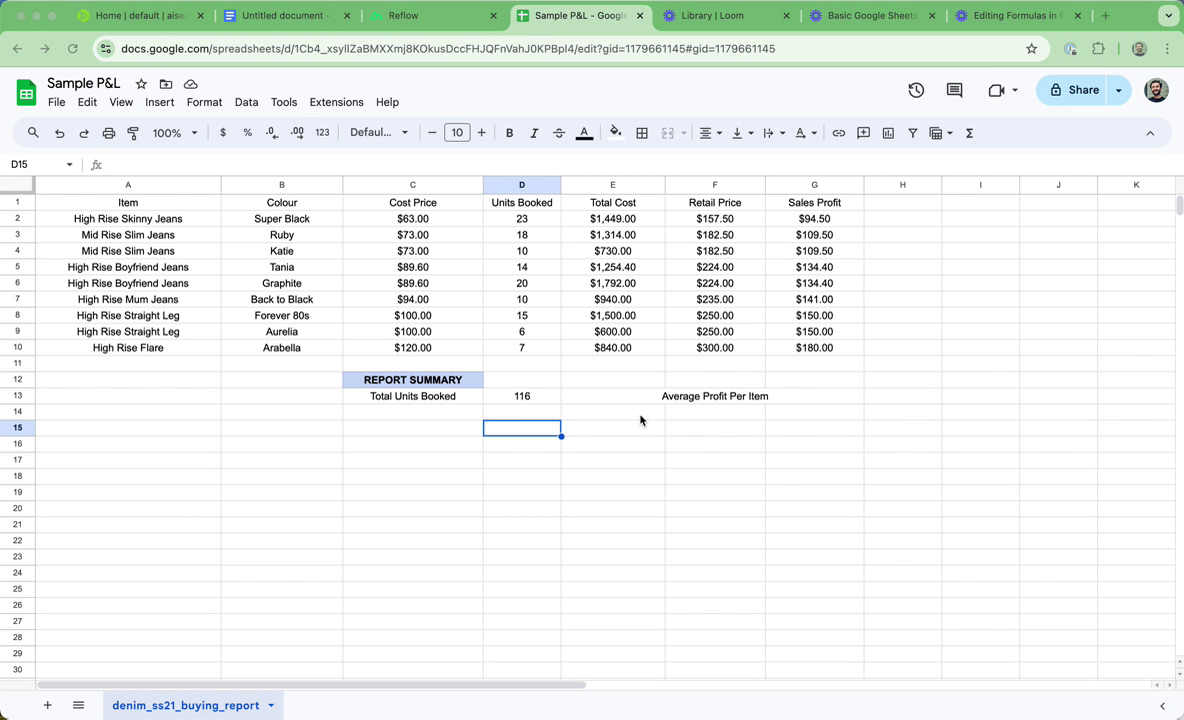

Begin by opening your profit and loss statement in Google Sheets. This will be the data source for your chart.

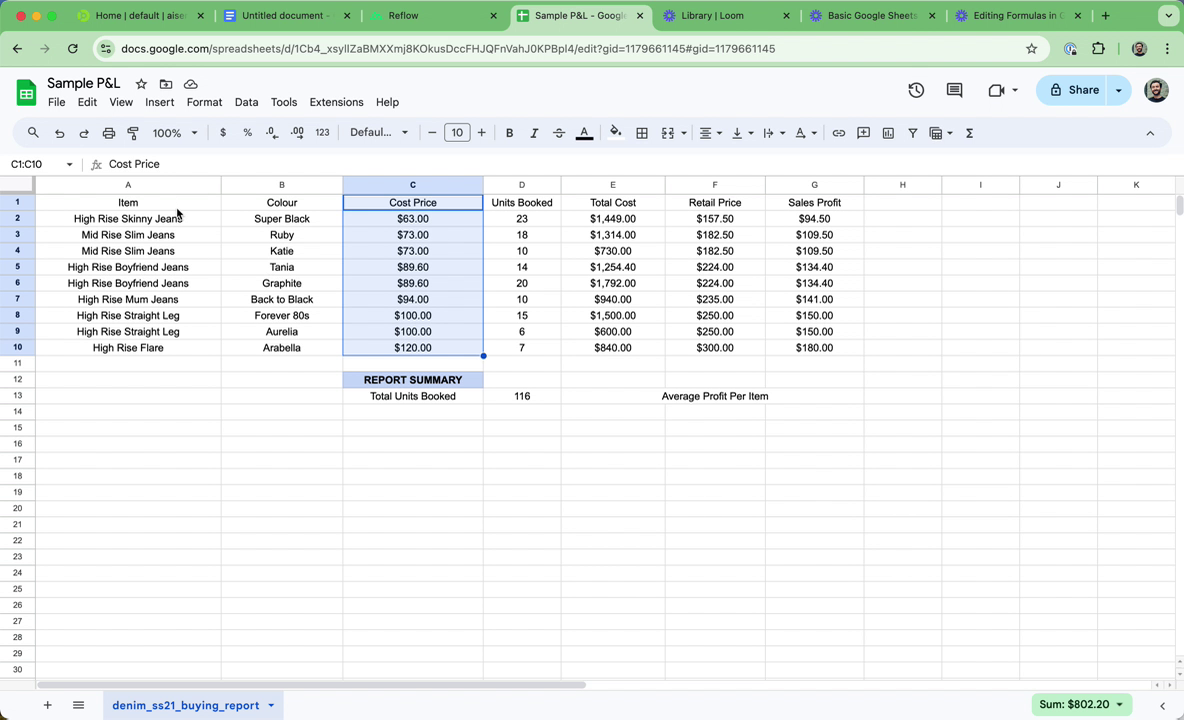

Highlight the cells that you want to use for the first axis of the chart. While holding the command key (or control key on Windows), also highlight the cells for the second axis.

Click on the "Insert" menu, then select "Chart." This action will create a basic chart from the highlighted data.

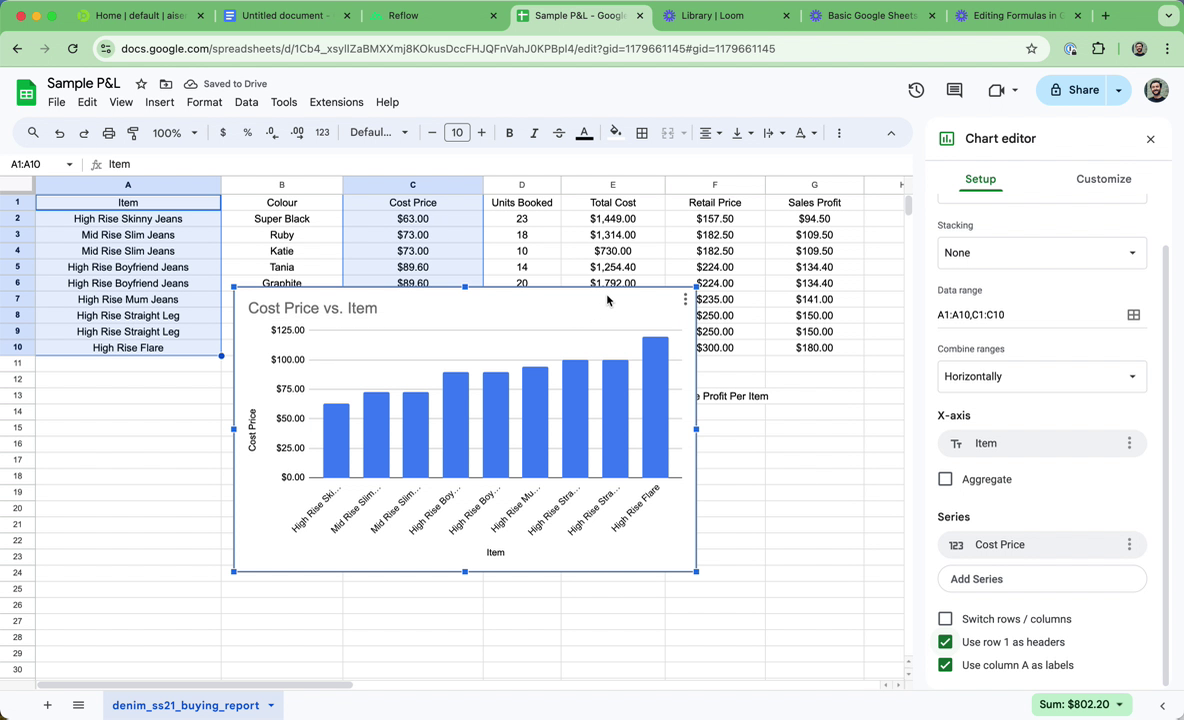

On the right side of the screen, you can change the type of chart. For example, you can select a bar chart for better visualization of your data.

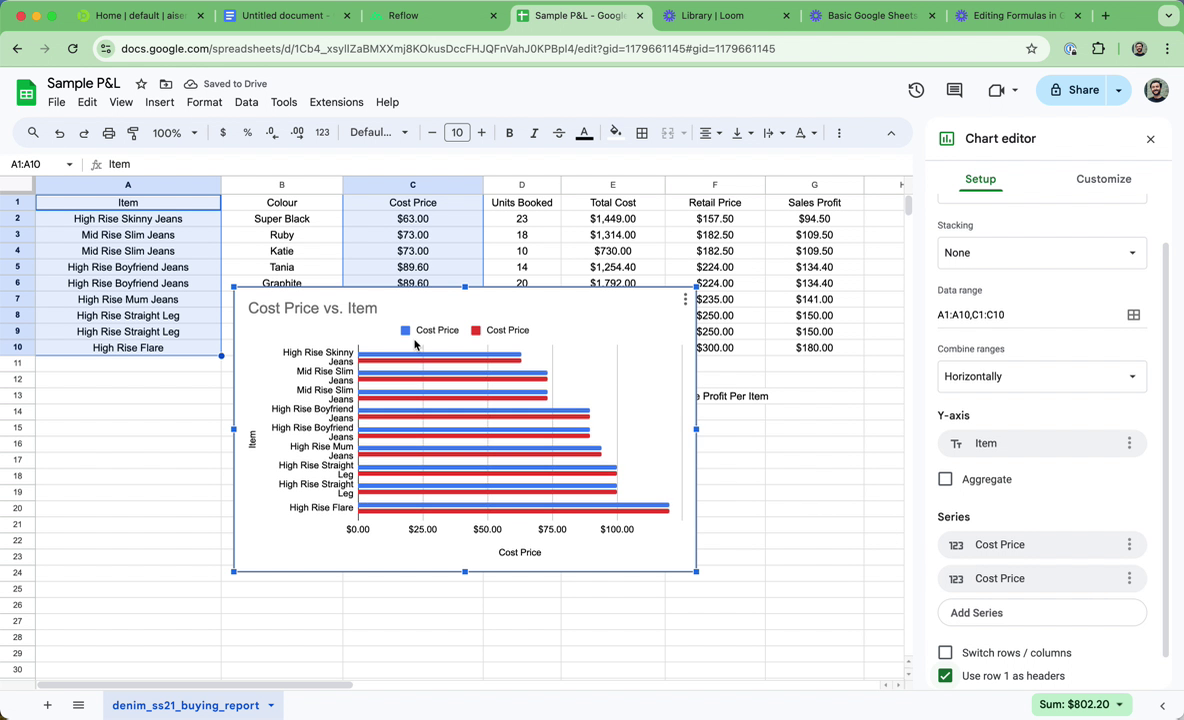

To add another data series to the chart, click on the "Add Series" option on the right side. Choose the additional series you want to include, such as another cost price.

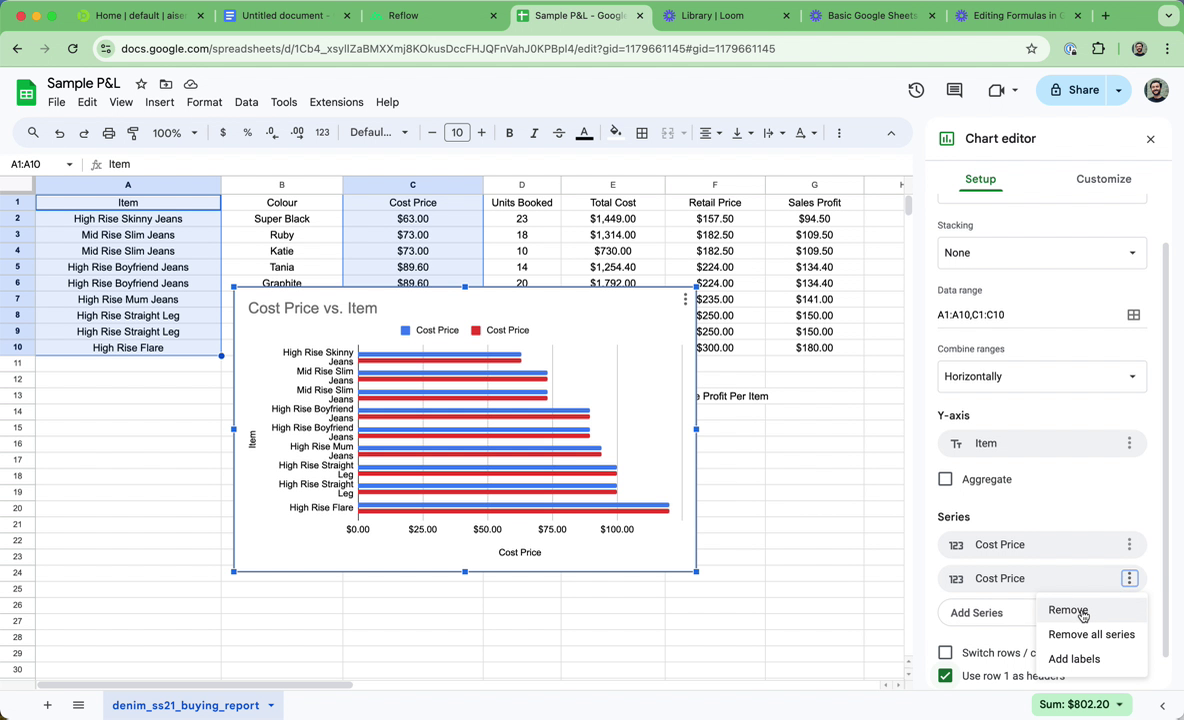

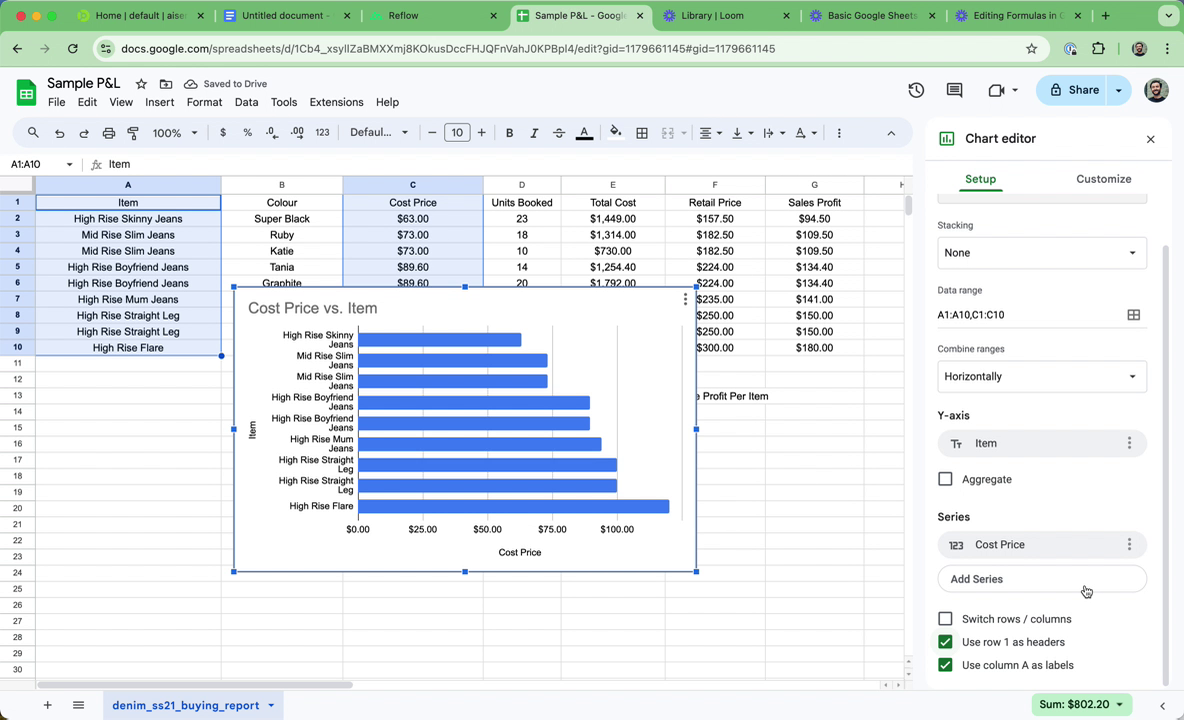

If you wish to remove a data series, click on the three dots next to the series name, then select the "Remove" option.

By following this guide, you have learned how to add and customize charts in your profit and loss statement using Google Sheets. With these visualizations, you can better analyze your financial data and present it effectively.
